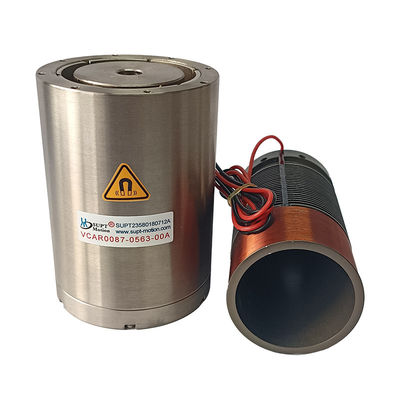

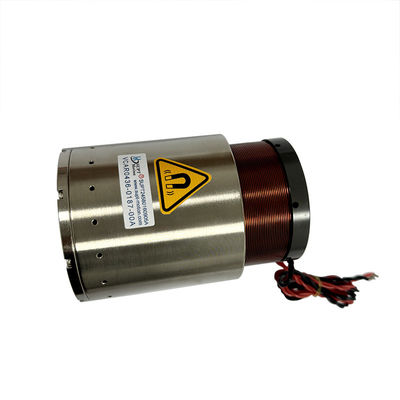

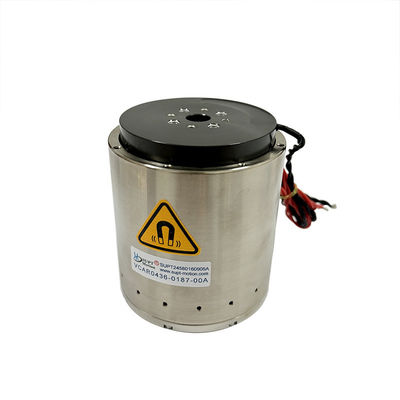

High Speed Micro VCM Voice Coil Motor For 3D Inspection Optical Systems

  • High Speed Micro VCM Voice Coil Motor For 3D Inspection Optical Systems
  • High Speed Micro VCM Voice Coil Motor For 3D Inspection Optical Systems
  • High Speed Micro VCM Voice Coil Motor For 3D Inspection Optical Systems
  • High Speed Micro VCM Voice Coil Motor For 3D Inspection Optical Systems
Τόπος καταγωγής Κίνα, Suzhou
Μάρκα SUPT MOTION
Πιστοποίηση CE,3C, ISO9001
Αριθμό μοντέλου Σειρά VCAR
Ποσότητα παραγγελίας min 1 τεμ
Τιμή $111-$200
Συσκευασία λεπτομέρειες Προσαρμοσμένη συσκευασία κλπ.
Χρόνος παράδοσης 1-5 κομμάτια, 5 ημέρες. > 20 κομμάτια, προς διαπραγμάτευση
Όροι πληρωμής T/T
Δυνατότητα προσφοράς προς διαπραγμάτευση

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

WhatsAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Συνολικό εγκεφαλικό επεισόδιο 4 χιλιοστά Μοντέλο VCAR0044-0040-00A
Μέγιστη δύναμη 44N Βάρος 46,5 γρ
Εφαρμογή Αυτόματο προϊόν Χρώμα Ασημένιο/μαύρο
Συνεχή δύναμη (N) 16.3 Μετατροπή Βούρτσα
Προστατέψτε το χαρακτηριστικό Εντελώς κλειστός Χρήση Βιομηχανίες ιατρικής, ημιαγωγών, αεροδιαστημικής, οργάνων μέτρησης ακριβείας, αυτοκινητοβιομηχανίας
Τύπος Μικροκινητήρας
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Product Description:

Voice coil motors, characterized by high acceleration, high precision, rapid response, high speed and limited travel.The SUPTMOTION voice coil motor model VCAR0044-0040-00A features a 4mm travel range. They enable ultra-high precision positioning within 3D inspection systems, with their core function being to achieve minute, swift, and accurate displacement. This ensures optical systems efficiently capture high-quality 3D information.

Voice coil motors are commonly employed in 3D inspection optical systems for focusing microscopes, white light interferometers, and planar scanning. Within focusing microscopes, the motor's closed-loop control continuously monitors image sharpness variations, dynamically adjusting drive current until it stabilizes at the optimal focal plane. Its precision displacement enables nanometer-level vertical movement of the objective lens along the Z-axis, enabling rapid autofocus.

In white-light interferometers, the interferometer module is mounted on a precision stage driven by a voice coil motor. This drives the entire interferometer module to move vertically along the Z-axis, enabling uniform and precise scanning of the height range of the measured object. The smoothness, linearity, and high resolution of the voice coil motor's motion determine the measurement accuracy of the three-dimensional topography.

Features:

Features of Voice Coil Motors:
High responsiveness, high acceleration, High speed,low-mass coil.No cogging effect, zero hysteresis.
Simple structure, lightweight, high-frequency response, smooth operation.
Stroke: 1mm-63mm.
Thrust: 0.7N-3000N.

Type: Cylindrical voice coil motor,Micro voice coil motor.VCM Voice Coil Motor

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7

Applications:

SUPT MOTION Voice Coil Motor Applications:

Voice coil motors are primarily used in medical, semiconductor, aerospace, automotive, and other fields, including valve actuators, small precision replacement measuring instruments, vibration platforms, and active vibration control systems. The market primarily targets the medical, semiconductor, aerospace, and automation industries.
1. Semiconductor Industry: Wiring, cutting, drilling, conveying systems, welding, robotics.
2. Field Valve Operation: Pneumatic valves for metering valves, pressure testing systems, chemical injection systems.
3. Micromechanics Industry: Feeding systems, micro-drilling, precision stamping.
4. Vibration Systems: Vibration tables, vibration platforms.
5. Medical field: Microinjection systems, respiratory equipment, diagnostic instruments.
