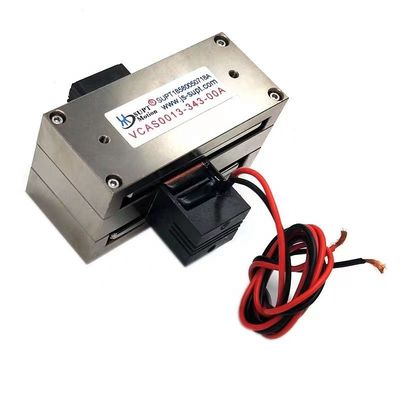

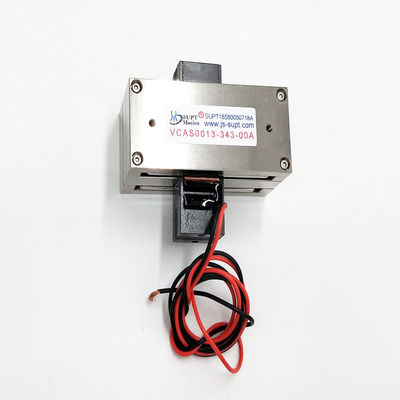

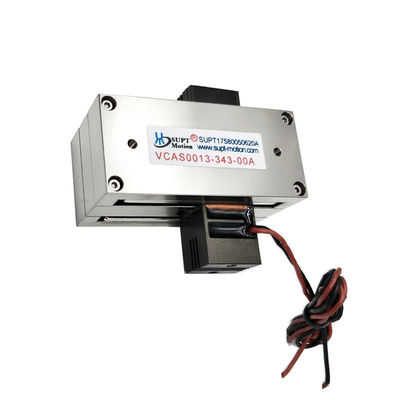

13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control

  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
Τόπος καταγωγής Κίνα, Σούτζου
Μάρκα SUPT MOTION
Πιστοποίηση CE, ISO9001，CCC
Αριθμό μοντέλου Σειρά VCAS
Ποσότητα παραγγελίας min 1 ΤΕΜ
Τιμή $99-$220
Συσκευασία λεπτομέρειες Προσαρμοσμένη συσκευασία κ.λπ.
Χρόνος παράδοσης 1-5 τεμ, 5 ημέρες. >20 τεμ., προς διαπραγμάτευση
Όροι πληρωμής T/T
Δυνατότητα προσφοράς Προς διαπραγμάτευση
Λεπτομέρειες
Δυνατότητα προστασίας Εντελώς κλειστό Αριθμό μοντέλου VCAS0013-0343-00A
Μέθοδος Ελέγχου Ηλεκτρονικός Συνολικό εγκεφαλικό επεισόδιο 34.3mm
Κατασκευή Μόνιμος Μαγνήτης Μέγιστη δύναμη 13N
Μέγεθος 68,3×60×34,8 χλστ Λέξεις-κλειδιά Λεωνικοί κινητήρες φωνητικής τροχιάς
Δυναμικό 12,6 V βάρος του πηνίου 40 γρ
Ταχύτητα Υψηλή ταχύτητα (rpm)
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Product Description:

The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm .
Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

The VCAS0013-0343-00A model of this rectangular voice coil motor has a peak thrust of 13 N and a total stroke of 34.3 mm, making it suitable for proportional valve actuation, medium-load positioning, and active damping systems. Its rated continuous thrust at 25°C is 8 N, ensuring reliable operation even in harsh environments.

In fluid control valve applications, proportional solenoid valves often suffer from hysteresis and limited bandwidth. In contrast, rectangular voice coil motors feature a linear force-current relationship throughout their operating stroke and are free from magnetic saturation, enabling precise flow regulation. The VCAS0013-0343-00A can directly replace solenoid valves in gas or liquid valves, offering faster response times and lower power consumption.

This product can also serve as a Z-axis actuator for light-force crimping or spring testing. The 34.3 mm stroke accommodates a wide range of workpiece sizes, while the 13 N peak force is sufficient to meet the demands of light-duty riveting or contact force control.

Features:

  • Peak Force:13N

  • Continuous Force @25℃: 8N

  • Total Stroke: 34.3mm

  • Max Voltage: 12.6 V

  • Back EMF Constant: 5.8V/m/s

  • Coil Weight: 40 g

  • Dimensions (L×W×H): 68.3×60×34.8 mm

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Length
(mm)		 Width
(mm)		 Height
(mm)
VCAS0002-0498-00A 2.1 1.3 50 11.3 1.3 15 72 42.6 33
VCAS0002-0747-00A 2.1 1.3 74.7 11.3 1.3 15 100.5 42.6 37
VCAS0006-0030-00A 6.1 3.2 3 13.3 4.6 18.2 25.1 34.1 27
VCAS0006-0099-00A 6.1 3.2 10 13.7 4.6 18.2 33.5 34.1 26.9
VCAS0013-0343-00A 13 8 34.3 12.6 5.8 40 68.3 60 34.8
VCAS0065-1000-00A 65 22.4 100 28.7 9.7 135 170 59.6 81.9





VCAS0013-0343-00A:

Parameter value Parameter value
Model VCAS0013-0343-00A Peak thrust 13N
Continuous Thrust (25°C) 8N Total stroke 34.3mm
Maximum Voltage 12.6V Back-EMF constant 5.8V/m/s
Length 68.3mm Width 60mm
Height 34.8mm Coil Weight 40g

Applications:

1.Proportional gas/fluid valves

2.Active vibration damping

3.Spring/force tester actuation

4.Light pressing / riveting

5.Micro-positioning of tools



The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.
