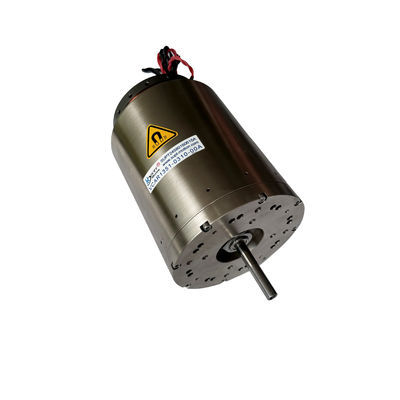

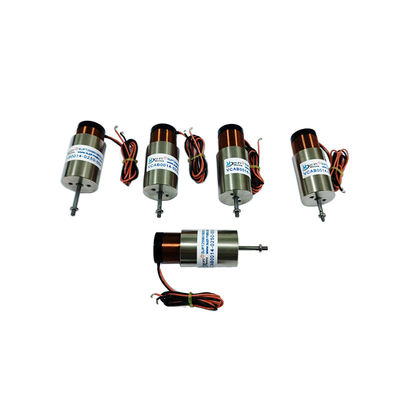

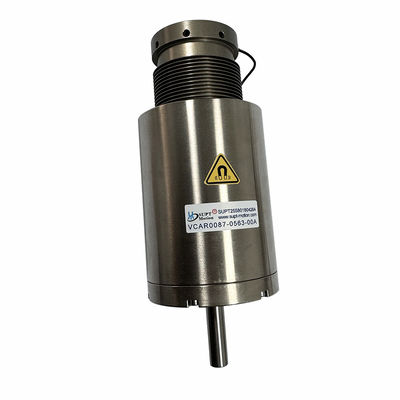

High Precision High Response Linear Voice Coil Motor For Automation Semiconductor

  • High Precision High Response Linear Voice Coil Motor For Automation Semiconductor
  • High Precision High Response Linear Voice Coil Motor For Automation Semiconductor
  • High Precision High Response Linear Voice Coil Motor For Automation Semiconductor
Τόπος καταγωγής Κίνα, Suzhou
Μάρκα SUPT MOTION
Πιστοποίηση ISO9001,CE,3C
Αριθμό μοντέλου Σειρά VCAB
Ποσότητα παραγγελίας min 1 τεμ
Τιμή $110-$190
Συσκευασία λεπτομέρειες Προσαρμοσμένη συσκευασία κλπ.
Χρόνος παράδοσης 1-5 κομμάτια, 5 ημέρες. > 20 κομμάτια, προς διαπραγμάτευση
Όροι πληρωμής T/T
Δυνατότητα προσφοράς Προς διαπραγμάτευση

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

WhatsAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Εγγύηση 3 μήνες-1 έτος Μοντέλο προϊόντος VCAB0044-0059-00A
βάρος ((g) 43 Δύναμη κορύφους (N) 44
Συνολική στροφή (mm) 5.9 Μέγιστη τάση (V) 14.3
Εφαρμογή Αυτόματο προϊόν Ταχύτητα Ψηλά
Τύπος προϊόντος γραμμική μηχανή σπειρών φωνής Μετατροπή Βούρτσα
Συνεχή δύναμη (N) 17.7N Πεδία Εφαρμογής 3C Ηλεκτρονικά, Ημιαγωγοί, Αυτοματισμοί, Οπτικά, Εξοπλισμός Επιθεώρησης
Ακρίβεια Ψηλά
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Product Description:

SUPT's VCAB0044-0059-00A linear voice coil motor, with its high precision and high-speed performance, excels in semiconductor inspection equipment, automated optical inspection platforms, and advanced manufacturing systems. The motor features low damping and high bandwidth, maintaining minimal positioning errors and high repeatability during high-speed movements. Its cog-free design enables smoother displacement, making it especially suitable for micro-displacement adjustments, probe station positioning, dispensing, chip placement, test fixture positioning, and fast inspection platforms. Its outstanding acceleration capability also meets the strict requirements for rapid response on high-throughput production lines.

In semiconductor automation, the Linear Voice Coil Motor has become an essential actuator thanks to its high acceleration, nanometer-level precision, zero-cogging motion, and fast dynamic response. The direct-drive mechanism ensures ultra-smooth motion without mechanical backlash, enabling superior performance in wafer handling, micro-positioning, lithography autofocus systems, packaging alignment, and high-speed inspection platforms.

Features:

  • Nanometer-Level Positioning Accuracy
  • High Acceleration / Fast Dynamic Response
  • Zero Cogging / Zero Backlash
  • Ultra Silent / Particle-Free Motion
  • Supports Closed-Loop Position / Force / Velocity Control

High Precision High Response Linear Voice Coil Motor For Automation Semiconductor 0

Technical Specifications :

Stroke:5.9mm

Continuous Force:17.7N

Peak Force:44N

Force Constant:8N/A

Resistance:6.2Ω

Mass:good

Dimensions:200*400*400cm

Working Current:2.3A

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10



Applications:

  • Wafer Handling Robot:Provides high-speed linear motion and flexible compensation, improving film transfer efficiency.

  • Lithography Autofocus Stage:Achieve nanometer-level focus fine-tuning and platform compensation.

  • AOI / AVI /Optical / Visual Inspection:Maintain image stability during high-speed scanning to reduce scanning errors.
  • Die Sorter:For high-speed picking, precise position control, and micro-displacement alignment.
  • Probe Tester:Control the contact force of the test probe to ensure test accuracy and repeatability
  • Precision Dispensing:Control the Z-axis height and glue dispensing pressure to improve consistency.
  • Packaging Assembly Stations:Supports ultra-fine micro-packaging nanometer positioning and high-speed locking operations.

High Precision High Response Linear Voice Coil Motor For Automation Semiconductor 1
